Product Details

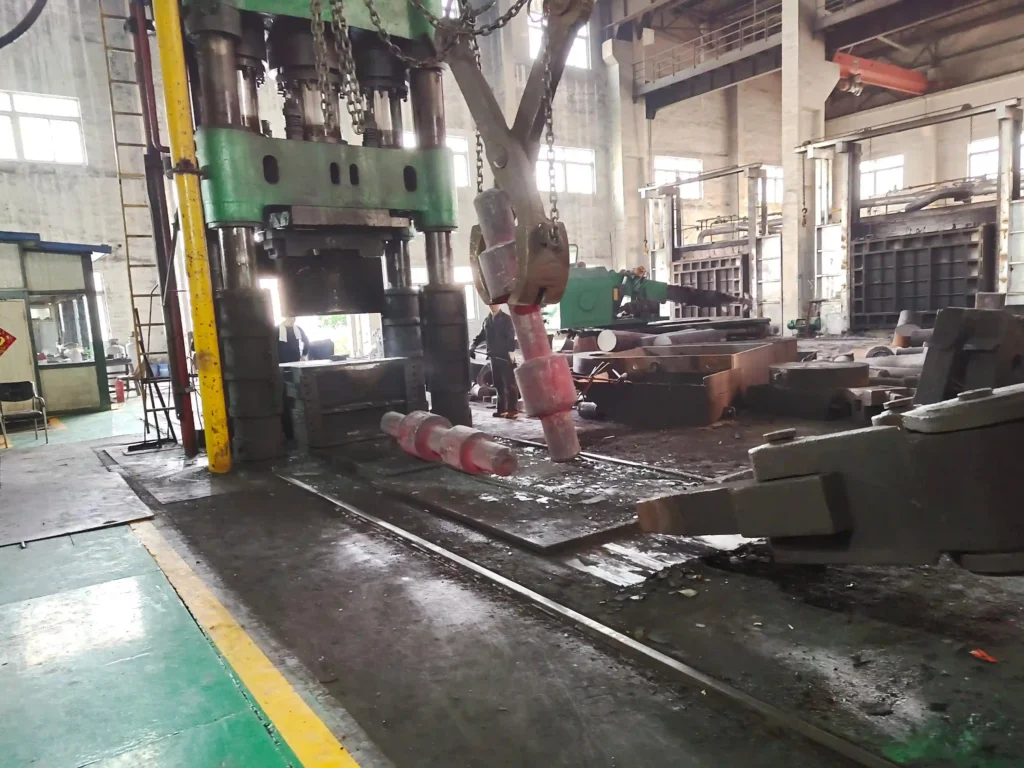

Our 42CrMo shafts are critical precision components engineered for high-performance industrial applications. Forged from premium 42CrMo alloy steel (recognized for its exceptional tensile strength and toughness), these shafts undergo meticulous mechanical machining to achieve ultra-precise dimensions, smooth surface finishes, and seamless geometric accuracy.
A cornerstone of manufacturing 42CrMo shafts is specialized heat treatment—a process that reshapes the alloy steel’s microstructure to unlock exceptional performance:
- Enhanced Strength & Hardness: Through quenching (heating to 850–900°C, then cooling in oil or via controlled methods) and high-temperature tempering (580–650°C), 42CrMo shafts gain the capacity to withstand heavy loads, high torque, and extreme operational stresses without deformation or failure.
- Superior Toughness & Wear Resistance: Carefully calibrated heating and cooling cycles ensure 42CrMo shafts resist abrasion and impact, preserving integrity during prolonged use in harsh environments (including mining, construction, and heavy machinery settings).
- Optimal Dimensional Stability: Heat treatment eliminates internal stresses in 42CrMo shafts, preventing warping over time and ensuring consistent, long-term performance in critical equipment like gearboxes, crushers, or industrial drivetrains.
From machining processes tailored to 42CrMo’s material properties to customized heat treatment regimens, our 42CrMo shafts deliver the reliability, durability, and precision needed to keep industrial operations running at peak efficiency.
42CrMo Shaft Heat Treatment & Process Optimization
1. Standard Heat Treatment for 42CrMo Shafts
42CrMo shafts typically undergo quenching + high-temperature tempering (also known as quenching and tempering) to achieve a balance of strength, toughness, and hardness.
-
Quenching:
- Temperature: 850–900°C (austenitizing temperature, ensuring alloy elements fully dissolve).
- Cooling medium: Oil (for moderate cooling, reducing deformation) or water (for faster cooling, used for thinner shafts).
- Key goal: Form martensite structure to maximize hardness.
-
Tempering:
- Temperature: 580–650°C (adjust based on required hardness: lower temp → higher hardness; higher temp → better toughness).
- Holding time: Calculated as t(h)=effective diameter(mm)×1.2(min/mm)/60 (ensures internal stress relief and microstructure stabilization).
- Key goal: Transform martensite into sorbite (fine, uniform structure) for optimal comprehensive mechanical properties.
2. Process Optimization (Addressing Common Issues)
To improve performance, reduce defects, or adapt to specific applications, optimize the heat treatment as follows:
(a) Reduce Deformation
- Issue: Traditional quenching (e.g., carburizing + full quenching) causes severe bending (up to 1–1.1mm for large shafts).
- Solution: Replace with high-frequency quenching + tempering after initial quenching and tempering:
- Pre-treat: Quench at 850°C, temper at 640°C (to achieve 280–320 HBW core hardness).
- Surface hardening: High-frequency quenching at 890°C (water spray cooling), then temper at 180°C.
- Result: Deformation reduced to 0.2–0.3mm, surface hardness 56–60 HRC (meets wear requirements for heavy-load shafts like those in coal mining machines).
(b) Increase Hardened Layer Depth
- Issue: Conventional water-air alternating quenching results in shallow hardened layers (insufficient strength for thick shafts).
- Solution: Optimize cooling cycles:
- Quenching steps:
- Heat to 820°C, hold, then water cool for 50–60s.
- Air cool until temperature 回升 to 300–350°C.
- Water cool again for 40–50s, then air cool to 200–250°C.
- Tempering: 580–650°C (holding time based on shaft diameter).
- Result: Hardened layer depth ≥15mm (vs. traditional 5–10mm), improving shaft strength and resistance to thread damage/bending.
- Quenching steps:
(c) Eliminate Structural Defects (e.g., Massive Ferrite)
- Issue: Untempered massive ferrite in the microstructure (caused by insufficient austenitization or slow cooling).
- Solutions:
- Austenitization: Ensure quenching temperature (860°C) and holding time (≥2h for thick shafts) to fully dissolve ferrite.
- Cooling rate: Use water-based quenching (830–810°C) for faster cooling (avoids ferrite precipitation).
- Normalization: Add a normalization step (870°C, air cool) before quenching to refine grains and eliminate network ferrite.
(d) Enhance Surface Wear Resistance
For shafts requiring high surface hardness (e.g., gear shafts, hinge shafts):
- Combine quenching and tempering with surface induction hardening:
- Pre-temper to 280–320 HBW, then inductively heat the surface to 850–900°C (local quenching), followed by low-temperature tempering (180–200°C).
- Result: Surface hardness 58–62 HRC, core toughness maintained (ideal for shafts under cyclic loading).
Key Takeaways
- Standard Process: Quenching (850–900°C, oil/water) + tempering (580–650°C) for balanced strength and toughness.
- Optimizations:
- Use high-frequency quenching to reduce deformation.
- Adjust cooling cycles to increase hardened layer depth.
- Add normalization or optimize austenitization to eliminate ferrite defects.
- Combine with induction hardening for targeted surface reinforcement.
These adjustments ensure 42CrMo shafts meet the strict mechanical requirements of industrial applications (e.g., crushers, gearboxes, mining machinery) while minimizing defects and improving service life.
