Sand Casting Services — Leesh Holdings Foundry Group
One-stop sand casting, CNC machining and inspection under one foundry group, based in Shenyang, China's heavy industry base.
Request a QuoteLeesh Holdings — Your Partner for Sand Casting Services
Leesh Holdings provides complete Sand Casting Services for buyers who need dependable cast components in gray iron, ductile iron, carbon steel, alloy steel and stainless steel. From our foundry group, each project runs from drawing review and pattern tooling through molding, pouring, finishing, machining and export packing, so you work with one responsible supplier from the first sample to container loading.
The service covers prototypes, pilot batches and volume programs. Castings range from a few hundred grams to tens of tons, and customers in construction, machinery, automotive and energy use our parts in pumps, gearboxes, engine components, crusher parts and structural equipment.
What Is Included in Our Sand Casting Services
Six in-house capabilities cover the entire route from drawing to delivery:
Pattern & Tooling
Patterns and core boxes built with correct shrinkage and machining allowances for your drawing.
Molding & Core Making
Green sand, furan resin sand and coated sand lines matched to your batch size and part structure.
Melting & Pouring
Electric furnace melting with per-heat chemistry control for iron and steel grades.
Finishing & Heat Treatment
Shakeout, riser removal, grinding and stress-relief annealing when the drawing requires it.
CNC Machining
Milling, boring, drilling and tapping carried out in our own machining workshops.
Inspection & Export Packing
Dimension, hardness and internal quality checks, then seaworthy packing for safe shipping.
Sand Casting Services – Technical Capabilities
Key parameters of our Sand Casting Services are summarized below:
| Item | Specification |
|---|---|
| Materials | Gray iron, ductile iron, carbon steel, alloy steel and stainless steel; grades to ASTM, SAE, AISI, ACI, DIN, EN, ISO and GB |
| Casting Weight | 0.1–3,000 kg for iron castings; 50–25,000 kg for steel castings |
| Molding Processes | Green sand, furan resin sand, water glass sand, coated sand (hot-box & shell molding) |
| Casting Process | Resin sand, green sand, water glass quartz sand, alkali phenolic resin sand, coated resin sand (hot-box & shell molding) |
| Dimensional Tolerance | CT8–CT12 (per ISO 8062) |
| Surface Roughness | Ra 6.3–25 μm as cast |
| Machining | CNC milling, boring, drilling and tapping to drawing tolerances |
| Industries Served | Construction, machinery, automotive, energy and general equipment |
Common Cast Iron & Cast Steel Material Grades
The two tables below list the grades we pour most frequently. They are common references only — other materials and special grades are available according to your drawings and requirements.
Cast Iron Material Grades
| Material Category | Common Grades |
|---|---|
| Gray Iron | ASTM A48 Cl.20, Cl.25, Cl.30, Cl.35, Cl.40; GG20, GG25, GG30, GG35; GB HT200, HT250, HT300 |
| Ductile Iron | ASTM A536 60-40-18, 60-42-10, 70-50-05; GGG40, GGG50, GGG60; GB QT400-15, QT450-10, QT500-7 |
Note: the grades above are the most commonly used cast iron grades and are not limited to these — other grades and special specifications are available per customer requirements.
Cast Steel Material Grades
| Material Category | Common Grades |
|---|---|
| Carbon Steel | WCB, WCC, LCB, LCC, 1020, 1025, 1040, 1.0619 |
| Alloy Steel | 8620, 8630, 4130, 4140, 4320 |
| Stainless Steel | ASTM A351 CF8, CF8M, CF3, CF3M, 4A, 6A; AS2074 |
Note: the grades above are the most commonly used cast steel grades and are not limited to these — other grades and special specifications are available per customer requirements.
Foundry Inside — Leesh Holdings Workshops
Quality starts on the shop floor. The photos below give you a look inside the workshops where your castings are molded, poured, machined and checked before shipment.

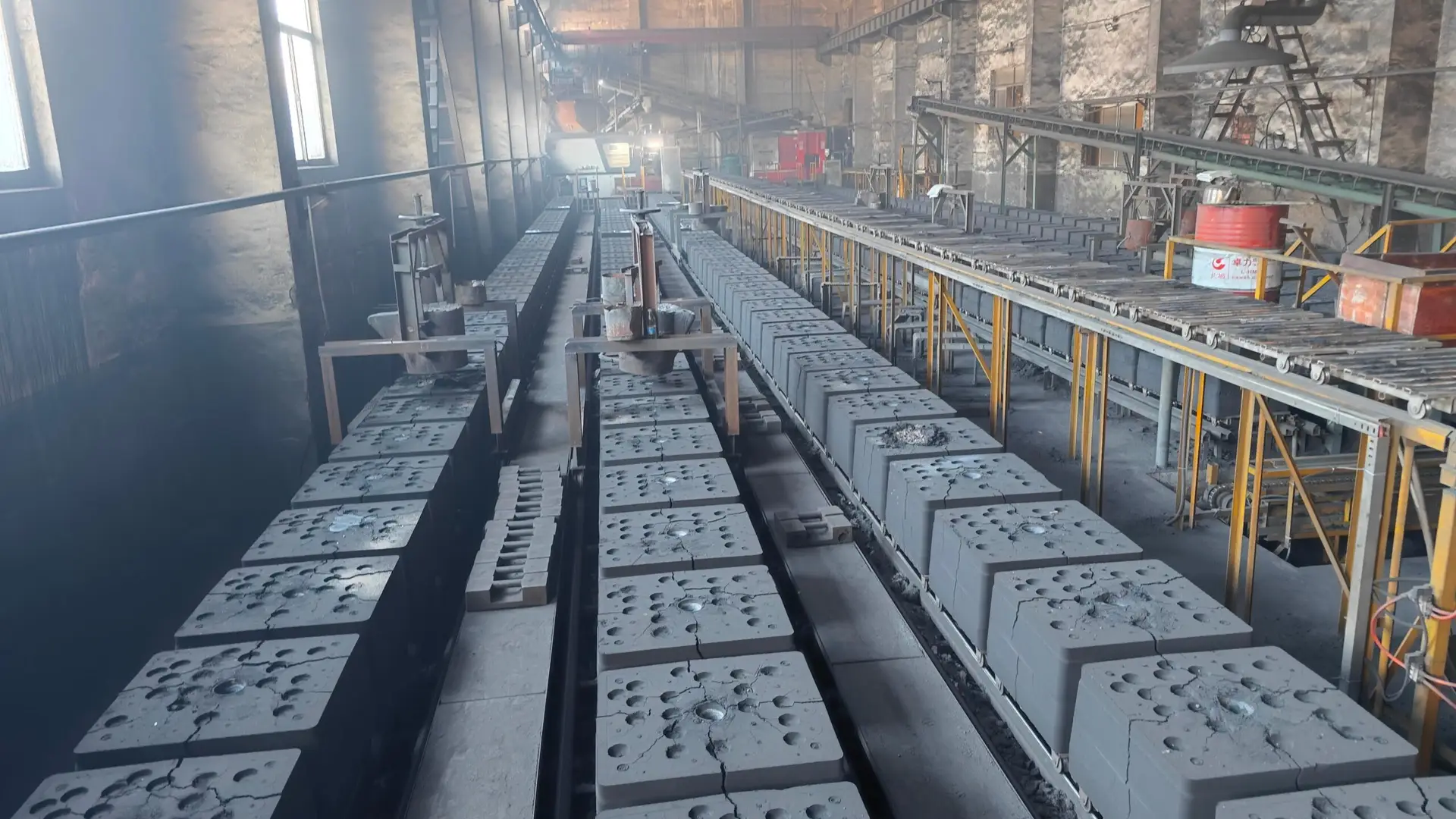

Automatic Molding Line

Melting & Pouring

Machining Workshop

Quality Inspection

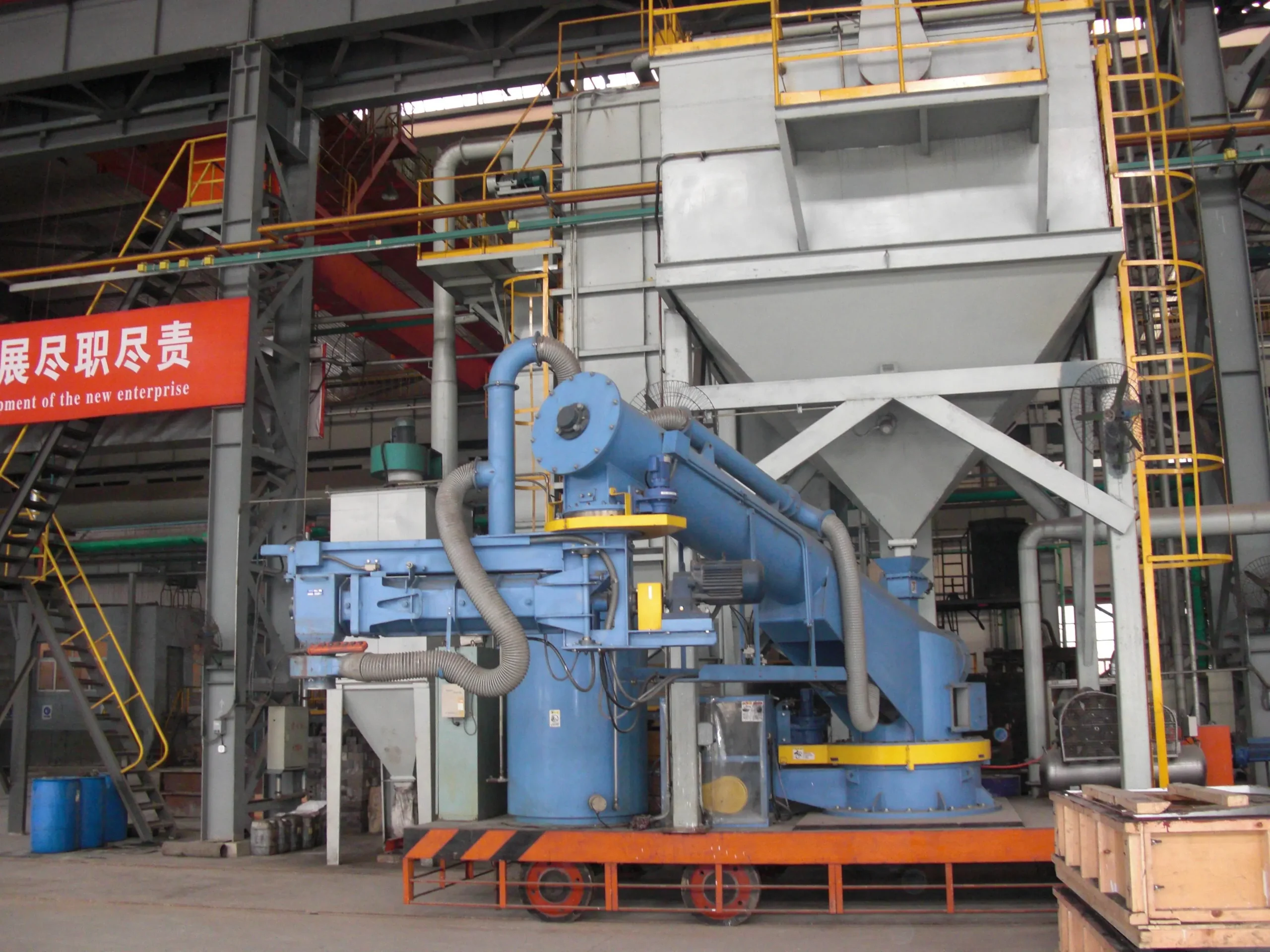

Pattern & Core Making

Heat Treatment

Shot Blasting

Packing & Shipping

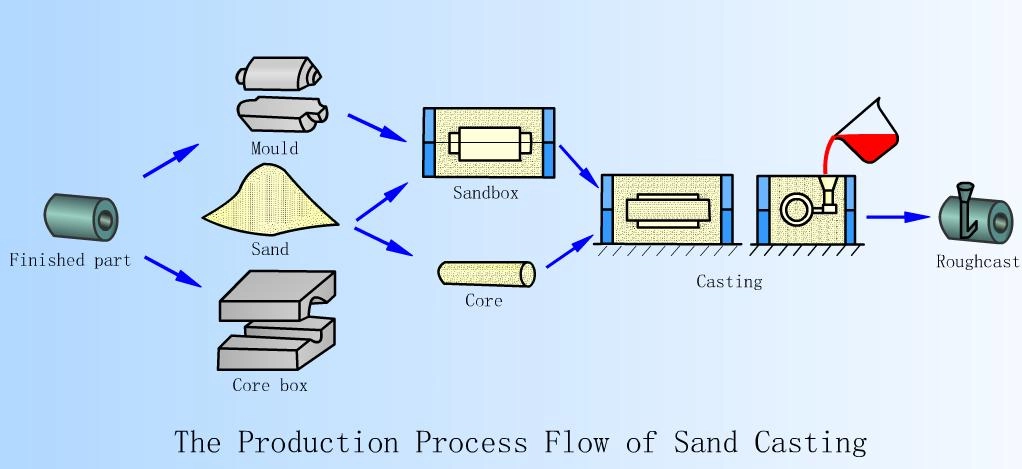

The Process Flow Behind Our Sand Casting Services
Every order follows the workflow illustrated below — from part drawing and mould design to machining, final inspection and loading:

Sand Casting Vs Investment Casting
Both processes are available inside Leesh Holdings, and the right choice depends on your part. Investment casting builds a ceramic shell around a wax pattern to deliver fine detail and a smooth as-cast surface, while sand casting uses lower-cost sand molds and handles much larger and heavier parts. The table below compares the two so you can match the process to your project.
| Feature | Sand Casting | Investment Casting |
|---|---|---|
| Molding Method | Expendable sand molds with reusable patterns | Wax patterns covered by a ceramic shell (lost wax) |
| Typical Materials | Gray iron, ductile iron, carbon steel, alloy steel, stainless steel | Mainly steel and special alloys |
| As-Cast Surface | Ra 6.3–25 μm | Smoother surface with finer detail |
| Dimensional Tolerance | CT8–CT12 (per ISO 8062) | Tighter, roughly CT4–CT6 |
| Part Size & Weight | From 0.1 kg up to tens of tons | Best for small to medium parts |
| Best For | Large, heavy parts and flexible batch sizes | Small, intricate parts with a fine finish |
If you are unsure which process suits your part, our engineers can review your drawing and recommend the most cost-effective route within our sand casting services.
Why Choose Leesh Holdings for Sand Casting Services?
- ✓ Two automatic casting lines plus flexible molding for prototypes and bulk orders
- ✓ Iron and steel foundries in one group — a single supplier for mixed materials
- ✓ In-house machining and inspection shorten lead times and protect quality
- ✓ Engineer review of every drawing before tooling, with feedback to reduce cost
- ✓ Seaworthy packing and export documentation for worldwide customers
Sand Casting Services FAQs
What do you need to prepare a quotation?
A 2D drawing (PDF) and, if available, a 3D model (STEP/IGES), together with the material grade, estimated weight, order quantity and machining requirements. An NDA can be signed before the technical review.
Which materials and standards do you support?
Gray iron, ductile iron, carbon steel, alloy steel and stainless steel, supplied to ASTM, SAE, AISI, ACI, DIN, EN, ISO and GB standards or to your own specification.
What tolerances can you reach?
As-cast dimensions follow CT8–CT12 per ISO 8062, while machined surfaces and bores are produced to the tolerances stated on your drawing.
Can you supply fully machined castings?
Yes. CNC milling, boring, drilling and tapping are done in our own workshops, so parts can arrive ready for your assembly line.
What are the MOQ and lead times?
MOQ is flexible and samples are welcome. Tooling normally takes a few weeks, while the production lead time of our sand casting services depends on quantity, material and machining scope.
