Cast Iron Exhaust Manifold – Precision Sand Casting Process

  1. automotive exhaust components
  2. sand cast exhaust systems
  3. engine exhaust manifolds

Our premium cast iron exhaust manifold is expertly crafted using precision sand casting technology, ensuring superior quality and performance. Made from high-grade cast iron, this essential engine component efficiently collects exhaust gases from multiple cylinders while withstanding extreme temperatures up to 750°C. The sand casting process guarantees intricate design details and perfect dimensional accuracy, resulting in optimal exhaust flow and reduced backpressure. Engineered for durability and longevity, this exhaust manifold provides reliable service in demanding automotive applications, delivering enhanced engine performance and fuel efficiency.

Manufacturing Method Sand Casting(Resin Sand, Pre-Coated Sand, Clay Sand, Water glass sand, Green Sand,lost foam )
Material Standard GB, ANSI, BS, DIN, JIS, ASTM, ASME, AISI, etc
carbon steel, low carbon steel, middle carbon steel, G35, G45, WCB, WCA, WCC, ISO 340-550, etc.
Alloy Carbon steel: G25CrMo4, Heat Resistant Steel, etc.
Stainless Steel: SUS 304, 304L, 316, 316L, CF8, CF8M, G-X7CrNiNb1189, etc. AS2074 or according to customer specific requirement.
Ductile Iron:A536-Gr.60-40-18,GGG40,GGG50,FCD40,FCD50,Gr370-17,Gr420-12,etc
Grey Iron:A48-No.20,25,30,GG10,GG15,GG20,FC10,FC15,FC20,Grade 150,180,220,FGL150,FGL200,FGL250,etc
Weight Range 1 kg to 100 Tons
General Casting Tolerance CT8-CT12
Design Software UG, Pro-E, Inventor
Dwg Format STP, STEP, IGS,STP,X_T ,DXF,DWG , Pro/E, PDF, SLDPRT
Mould Manufacturing Yes
Casting Stimulation Yes
Ultimate machining tolerance 0.005mm
Quality Control RT,UT,MT,PT,CMM,SCAN,Chemical and Mechanical Property Testing,Spectrometer,etc
Finish Roughness Ra12.5-Ra25 according to customer requirement
Logo/ID Silk-screening, Laser Marking, Engrave,Painting
Heat Treatment Normalization, Annealing, Quenching and Tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching,etc
Surface Treatment Shot/sand blast, Polishing, Surface Passivation, Painting , Anodizing,Powder coating, ED- Coating, Chrome Plating, zinc-plate, Dacromat coating, Finish Painting,hot-dip galvanizing, etc

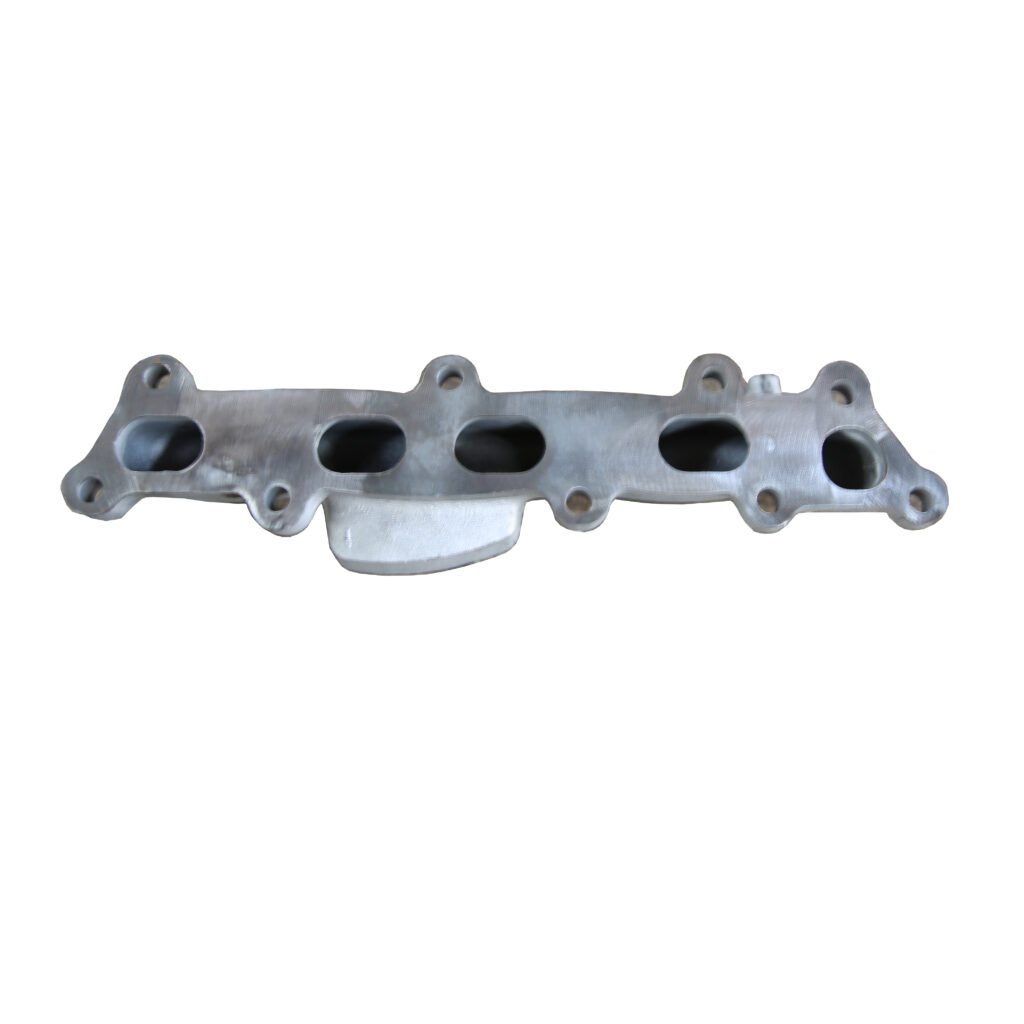

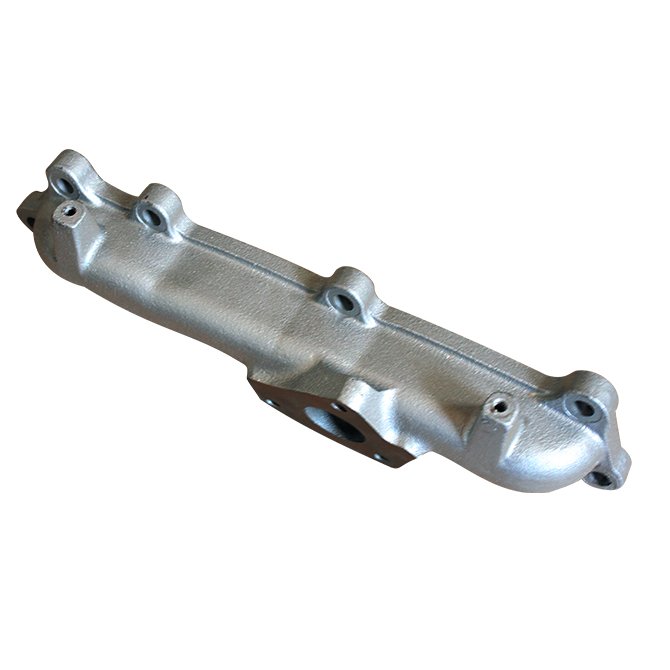

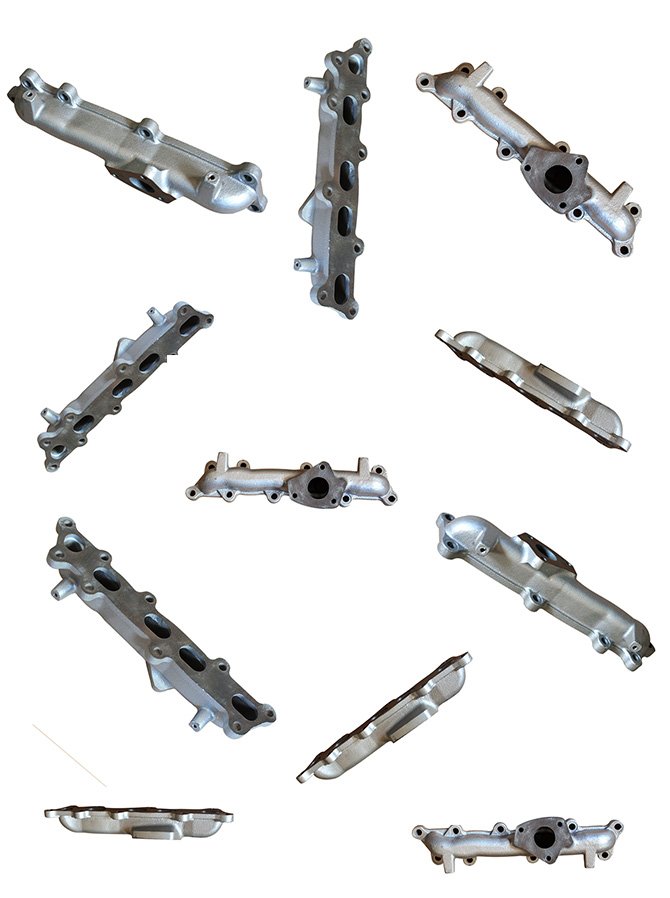

Exhaust Manifold Exhaust Manifold (3) Exhaust Manifold (5) Exhaust Manifold (7) Exhaust Manifold (8)
