Gear Hobbing Services for Precision Gears
Our gear hobbing services cover the complete production journey — from material selection and gear engineering support to cutting, heat treatment, and final inspection. We manufacture custom spur gears, helical gears, worm gears, and sprockets for customers in automotive, robotics, agriculture, and industrial machinery. Whether you need a single prototype or a high-volume production run, our CNC gear-cutting workshop delivers consistent quality with short lead times.
What Is the Gear Hobbing Process?

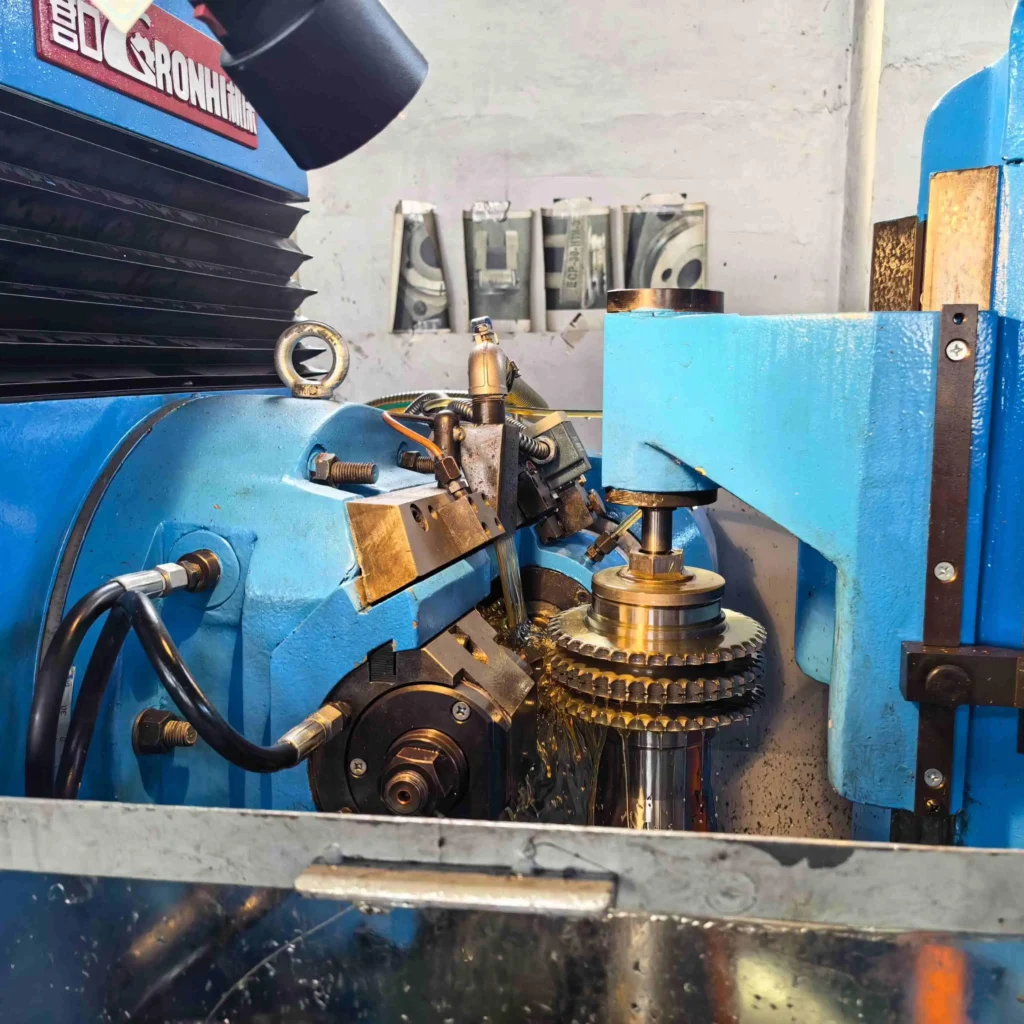

The gear hobbing process is one of the most efficient methods of cutting gear teeth. Inside a CNC hobbing machine for gear production, a worm-shaped cutting tool called a hob rotates in precise synchronization with the metal blank, progressively generating accurate tooth profiles across the workpiece. Because cutting is continuous rather than intermittent, gear tooth hobbing achieves excellent consistency and surface finish at a fraction of the cost of shaping or milling — which is why it remains the industry standard for medium and high-volume gear production.
Key Advantages of the Hobbing Method
- High efficiency — continuous cutting makes hobbing the fastest route to finished cylindrical gears in volume
- Versatility — one machine platform covers spur, helical, worm gears, and splines simply by changing the hob
- Accuracy — CNC multi-axis control holds tight tooth-to-tooth error, runout, and profile tolerances
- Repeatability — synchronized tool and blank rotation keeps every tooth identical from first article to last
Gear Hobbing Machining Capabilities
Our gear hobbing machining service handles the full spectrum of cylindrical gear work, from fine-pitch instrument gears to heavy-duty industrial drive gears. Every part is cut on CNC equipment, deburred, and verified in our in-house metrology lab before it leaves the factory.
| Item | Capability |
|---|---|
| Gear types | Spur, helical, double helical, worm gears, sprockets, splines |
| Module / DP | Module 0.5 – 20 (DP 1.5 – 48) |
| Max outer diameter | Up to 1,200 mm |
| Max face width | Up to 600 mm |
| Accuracy grade | AGMA 8 – 12 / DIN 6 – 9, tighter grades via gear grinding |
| Order quantity | 1-piece prototype to 100,000+ series |
| Lead time | 7 – 20 days depending on size and quantity |
Materials We Work With
We hob carbon steel, alloy steel, stainless steel, brass, bronze, aluminum, and engineering plastics such as POM, nylon, and PEEK. Post-cutting options include carburizing, induction hardening, nitriding, quench and temper, gear grinding, and polishing, so your parts arrive ready to assemble. Material certificates and hardness reports are available on request.
Our Production Workflow
A controlled six-step flow keeps quality predictable from quotation to shipment:
1
2
3
4
5
6
Hobbing vs. Shaping vs. Grinding
Choosing the right tooth-cutting route affects both cost and precision. Hobbing is the most economical option for external cylindrical gears in medium and high volumes; shaping suits internal gears and parts close to shoulders; grinding delivers the highest accuracy for hardened teeth. Our engineers recommend the best route for your application during DFM review.
| Process | Best for | Relative cost | Typical accuracy |
|---|---|---|---|
| Hobbing | External spur & helical gears, medium to high volume | Low | AGMA 8 – 12 (DIN 6 – 9) |
| Shaping | Internal gears and close-to-shoulder geometry | Medium | AGMA 8 – 11 |
| Grinding | Hardened, high-precision, low-noise gears | High | AGMA 10 – 14 (DIN 3 – 6) |
Spur Gear Manufacturing and Custom Gear Solutions
Spur gear manufacturing is the core of our workshop. Straight-cut spur gears remain the most cost-effective choice for parallel-shaft power transmission, and our process keeps tooth-to-tooth error tightly controlled across the entire batch. Beyond spur gears, we produce helical gears for quiet high-speed drives, worm gear sets for high-ratio reduction, herringbone gears, internal gears, and custom sprockets. Send a drawing in PDF or STEP format — our engineers will confirm feasibility and suggest cost-saving optimizations before quoting.
Why Choose Our Gear Hobbing Service?
- Engineering support — free DFM review of module, tooth profile, material, and tolerance before production starts
- In-house quality lab — gear measuring center, over-pin and runout checks, and hardness testing on every batch
- One-stop finishing — grinding, shaving, honing, heat treatment, and surface coatings under one roof
- Export-ready logistics — rust-proof packaging and door-to-door delivery to North America, Europe, and Australia
Industries We Serve
Our precision-cut gears support industries where dependable gear hobbing is critical:
Frequently Asked Questions
1. What is gear hobbing used for?
It is the standard method for cutting teeth into spur gears, helical gears, worm gears, splines, and sprockets. Teams choose it whenever they need accurate tooth geometry at a reasonable cost — from tiny instrument gears to gearing more than a meter in diameter.
2. How accurate is your gear hobbing machining?
Standard CNC cutting reaches AGMA 8 – 10 (DIN 7 – 9) accuracy straight off the machine. For quieter, higher-load applications we combine hobbing with gear grinding or shaving to reach AGMA 10 – 12 (DIN 5 – 6), and every batch ships with inspection records.
3. Can you produce gears from my samples or drawings?
Yes. Upload a 2D drawing with module, tooth count, material, and hardness — or send a physical sample for reverse engineering. We measure it, build a 3D model for your approval, and return a quotation within 24 hours.
4. Do you accept small orders or prototypes?
There is no minimum order quantity. We regularly machine one-piece prototypes for R&D teams and then scale the same proven process to mass production, so design validation and volume supply stay fully consistent.
Get a Free Quote for Gear Hobbing Services
Send your drawings or requirements today and receive pricing, DFM feedback, and a delivery schedule within one business day. Our team supports customers worldwide with flexible quantities, stable quality, and honest lead times.
