Investment Casting integrated and complicated Components

Investment Casting: Precision for Diverse Components

Investment casting is the preferred method for crafting our range of high – performance components, including Cast Flanged Tee Pipe Fittings, Centrifugal Impellers, and Double – hole Connecting Seats. This process ensures intricate details and high – dimensional accuracy, crucial for these parts’ functionality.

Materials: CF8, CF8M, and Duplex Stainless Steel

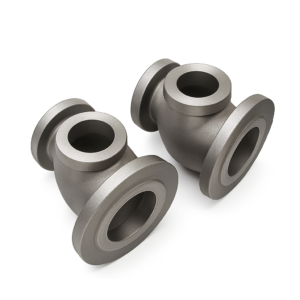

CF8: A type of austenitic stainless steel, CF8 offers good corrosion resistance and mechanical properties. It is suitable for applications where a balance between cost – effectiveness and corrosion protection is required. In the case of cast flanged tee pipe fittings, CF8 can withstand a variety of fluids and environmental conditions commonly encountered in industrial piping systems.

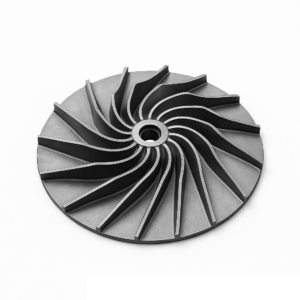

CF8M: Also an austenitic stainless steel, CF8M contains molybdenum, which significantly enhances its corrosion resistance, especially in reducing media and against various acids, alkalis, and salts. For centrifugal impellers, the high corrosion resistance of CF8M is essential as they often come into contact with corrosive liquids during operation.

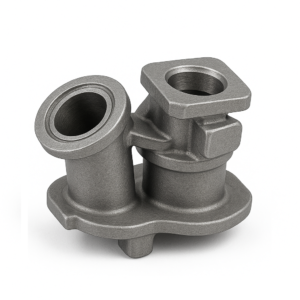

Duplex Stainless Steel: Comprising a mix of austenitic and ferritic phases, duplex stainless steel combines the strength of ferritic steel with the corrosion resistance of austenitic steel. This makes it an ideal choice for double – hole connecting seats, which may need to endure high – stress environments while resisting corrosion.

Applications

Our cast flanged tee pipe fittings are widely used in plumbing, oil and gas, and chemical processing industries. The centrifugal impellers are crucial in pumps used in water treatment plants, refineries, and power generation facilities. Double – hole connecting seats find applications in machinery where secure connections between different components are required, such as in construction equipment and industrial machinery.

Quality Assurance

Through investment casting, we ensure that each product made from CF8, CF8M, or duplex stainless steel meets the highest quality standards. Stringent quality control measures are in place from raw material inspection to the final product testing, guaranteeing the reliability and performance of our Cast Flanged Tee Pipe Fittings, Centrifugal Impellers, and Double – hole Connecting Seats.

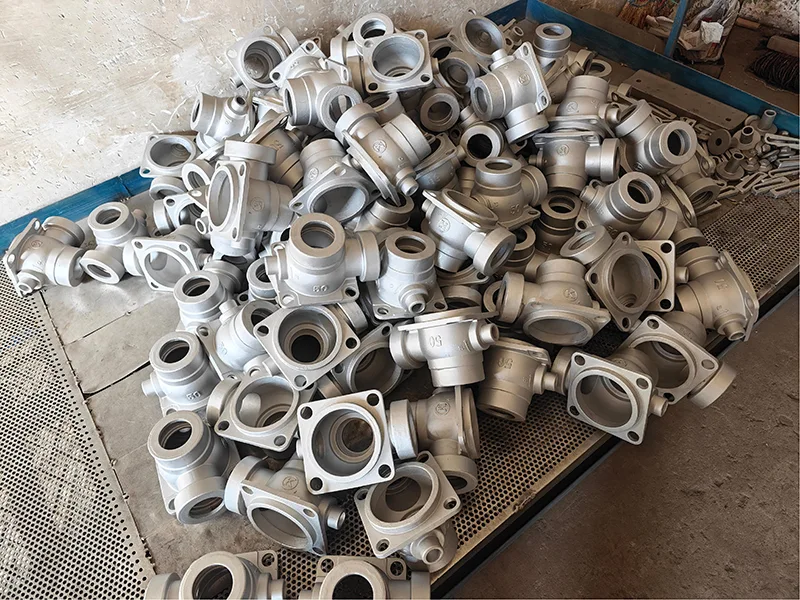

Our company provides high-quality investment casting services, specializing in the production of precision valve body components. As shown in our facility, we handle high-volume orders for complex parts, from raw casting to finished product. Using advanced investment casting techniques, we manufacture durable valve body parts in various alloys, including stainless steel and bronze. We are an OEM partner for your industrial needs.

Manufacturing Method	Investment Casting(Lost Wax Casting)
Material Standard	GB, ANSI, BS, DIN, JIS, ASTM, ASME, AISI, etc Carbon steel, Low carbon steel, Middle carbon steel, G35, G45, WCB, WCA, WCC, ISO 340-550, etc. Alloy Carbon steel: G25CrMo4, Heat Resistant Steel, etc. Stainless Steel: SUS 304, 304L, 316, 316L, CF8, CF8M, G-X7CrNiNb1189, AS2074 or according to customer specific requirement. Copper, Brass, Bronze
Weight Range	0.01 kgs to 100 kgs
Cast Hole Min. Dia.	Ø2mm
General Casting Tolerance	CT4-CT7
Design Software	UG, Pro-E, Inventor
Dwg Format	STP, STEP, IGS,STP,X_T ,DXF,DWG , Pro/E, PDF, SLDPRT
Mould Manufacturing	Yes
Casting Stimulation	Yes
Ultimate machining tolerance	0.005mm
Quality Control	RT,UT,MT,PT,CMM,SCAN,Chemical and Mechanical Property Testing,Spectrometer,etc
Finish Roughness	Ra1.6-Ra3.2 according to customer requirement
Logo/ID	Silk-screening, Laser Marking, Engrave,Painting
Heat Treatment	Normalization, Annealing, Quenching and Tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching,etc
Surface Treatment	Shot/sand blast, Polishing, Surface Passivation, Painting , Anodizing,Powder coating, ED- Coating, Chrome Plating, zinc-plate, Dacromat coating, Finish Painting,hot-dip galvanizing, etc

Investment casting, also known as lost wax casting, is a casting method in which a pattern is made of a melt-able material, then coated with several layers of refractory material to form a shell, and the pattern is melted away after high-temperature firing, and then the molten metal is poured into the shell.

Investment casting have high precision and high surface quality, with small machining allowances, which can achieve less or no machining requires. Investment casting can cast complex thin-walled parts with complex shapes (the minimum wall thickness can reach 0.25-0.4mm), and the smallest hole diameter can reach 2.5mm.

The process normal as below:

Drawing Review ->Tooling Designing ->Tooling Manufacturing ->Wax Pattern Making ->Pattern Tree Assembly ->Dipping and Coating ->De-waxing and Firing- Pouring-Knockout ->Grinding ->Heat Treatment -> Machining(if requires) ->Inspection->Delivery

Leesh holdings is the key leading supplier of investment cast parts to both China market and global market.Through many years development, our casting parts now services in railway, automobile and truck, construction machinery, mining machinery, forklift truck, agricultural machinery, ship, petroleum machinery, construction, pump valve, mechanical and electrical, hardware tools, electric power equipment, etc.

Leesh capability

Method: Investment Casting, Lost Wax Casting, Precision Casting

Process Description	Process Control
Process Description	Mass(kgs)	General Tolerance Standard	Casting Tolerance(CT)	Surface Rougness(μm)
Silicon Sol	0.05-50	ISO 8062	CT4-CT6	Ra 3.2～6.3 μm
Water Glass	0.10-100	ISO 8062	CT6-CT8	Ra 6.3～12.5 μm

Material:

Stainless Steel (General SUS304, SUS316, 1.4301), etc.,

Stainless Iron (General 201, 420, 430), etc.,

High/Middle/Low Carbon Steel (A3, Q235, 45), etc.,

Alloy Steel (General 20cr, 20crmo, 20crnimo, 40cr, 40crmo, 40crnimo, 42cr, 42crmo, 42crnimo) etc.,

Brass (H59, H62, H75, H80), etc.,

Red Copper, Bronze, White Copper and other materials.

The above list Is For Reference Only, If You Have Special Needs, Please Contact Customer Service Staff.

Post Casting Process:

Ordinary Polishing, Mirror Polishing, Electrolytic Polishing, Brushed Finishing, Grinding, Heat Treatment, Finishing, Drilling and Tapping,Plating, etc

Surface Treatment:

polishing, powder coating, zinc plating, chrome plating,heat treatment,tumbling polishing, electro-polishing.

We understand your concerns about the quality, we have bought full sets of advanced inspection facilities,Spectrum analyzer, metallographic microscope, tensile testing machine, low temperature impact testing machine, X-ray flaw detection machine, magnetic particle flaw detection machine, ultrasonic flaw detection machine, coordinate measuring instrument, image measuring instrument. The above equipment can ensure the supply of high-standard precision castings to customers, and meet customers’ comprehensive testing requirements for physical and chemical properties of materials, non-destructive defect testing, and high-precision geometric size testing.
