Investment Casting Straight Miter Gears Spiral Bevel Tooth

Investment Casting for High – Quality Gears

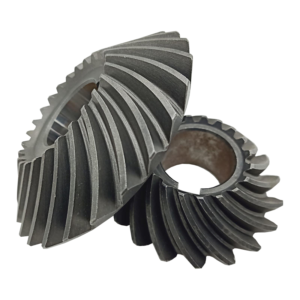

Investment casting is the core process in manufacturing our outstanding Straight Miter Gears. This precision casting technique ensures that each gear is produced with the highest level of accuracy, meeting the stringent requirements of diverse applications.

Gear Profile and Design

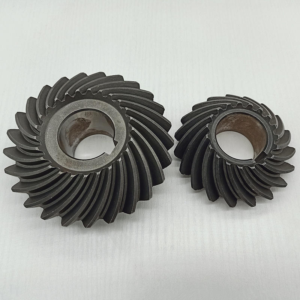

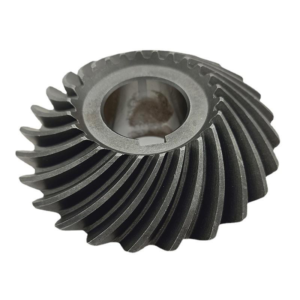

Our Straight Miter Gears are characterized by a spiral bevel tooth profile. When combined with the helical gear design, it enables smooth and efficient power transmission. The spiral bevel tooth profile effectively reduces noise and vibration during operation, thus enhancing the overall performance of the gears.

Material Excellence

We utilize 20CrMnTi and its equivalent material grades for these gears. 20CrMnTi is well – known for its good hardenability, high strength, and excellent wear – resistance. This material endows the gears with the durability necessary to endure heavy – duty applications.

Surface Finish: Carburizing and Quenching

The surface finish of our gears is accomplished through carburizing and quenching. This process significantly increases the surface hardness of the gears while preserving their core toughness. The carburizing and quenching treatment enhances wear resistance, fatigue strength, and the overall service life of the Straight Miter Gears. Whether employed in automotive transmissions, industrial machinery, or other mechanical systems, our investment – cast Straight Miter Gears, with their spiral bevel tooth profile, made of 20CrMnTi and featuring carburizing and quenching surface finish, are engineered to offer reliable and long – lasting performance.

Here are some equivalent material grades of 20CrMnTi in different standards:

1. ISO (International Organization for Standardization)

20MnCr5 is quite similar. It has a comparable chemical composition and mechanical properties. The main alloying elements in both steels are manganese (Mn), chromium (Cr), and titanium (Ti), which contribute to hardenability, strength, and wear – resistance.

2. German Standard (DIN)

In the German DIN standard, 20MnCr5 is the equivalent grade. It is widely used in the automotive and machinery industries for components like gears and shafts, just like 20CrMnTi.

3. American Standard (AISI / SAE)

There isn’t a direct one – to – one equivalent, but steels like 5120H can be considered in the same general class. However, 5120H has a slightly different chemical composition, with less manganese compared to 20CrMnTi, and it may require some adjustment in heat treatment processes to achieve similar properties.

4. Japanese Standard (JIS)

SCM420H can be related. While not an exact match, it shares some similarities in terms of the alloying elements and can be used in similar applications after appropriate heat treatment to achieve comparable mechanical properties.

Our company provides high-quality investment casting services, specializing in the production of precision valve body components. As shown in our facility, we handle high-volume orders for complex parts, from raw casting to finished product. Using advanced investment casting techniques, we manufacture durable valve body parts in various alloys, including stainless steel and bronze. We are an OEM partner for your industrial needs.

Manufacturing Method	Investment Casting(Lost Wax Casting)
Material Standard	GB, ANSI, BS, DIN, JIS, ASTM, ASME, AISI, etc Carbon steel, Low carbon steel, Middle carbon steel, G35, G45, WCB, WCA, WCC, ISO 340-550, etc. Alloy Carbon steel: G25CrMo4, Heat Resistant Steel, etc. Stainless Steel: SUS 304, 304L, 316, 316L, CF8, CF8M, G-X7CrNiNb1189, AS2074 or according to customer specific requirement. Copper, Brass, Bronze
Weight Range	0.01 kgs to 100 kgs
Cast Hole Min. Dia.	Ø2mm
General Casting Tolerance	CT4-CT7
Design Software	UG, Pro-E, Inventor
Dwg Format	STP, STEP, IGS,STP,X_T ,DXF,DWG , Pro/E, PDF, SLDPRT
Mould Manufacturing	Yes
Casting Stimulation	Yes
Ultimate machining tolerance	0.005mm
Quality Control	RT,UT,MT,PT,CMM,SCAN,Chemical and Mechanical Property Testing,Spectrometer,etc
Finish Roughness	Ra1.6-Ra3.2 according to customer requirement
Logo/ID	Silk-screening, Laser Marking, Engrave,Painting
Heat Treatment	Normalization, Annealing, Quenching and Tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching,etc
Surface Treatment	Shot/sand blast, Polishing, Surface Passivation, Painting , Anodizing,Powder coating, ED- Coating, Chrome Plating, zinc-plate, Dacromat coating, Finish Painting,hot-dip galvanizing, etc

Investment casting, also known as lost wax casting, is a casting method in which a pattern is made of a melt-able material, then coated with several layers of refractory material to form a shell, and the pattern is melted away after high-temperature firing, and then the molten metal is poured into the shell.

Investment casting have high precision and high surface quality, with small machining allowances, which can achieve less or no machining requires. Investment casting can cast complex thin-walled parts with complex shapes (the minimum wall thickness can reach 0.25-0.4mm), and the smallest hole diameter can reach 2.5mm.

The process normal as below:

Drawing Review ->Tooling Designing ->Tooling Manufacturing ->Wax Pattern Making ->Pattern Tree Assembly ->Dipping and Coating ->De-waxing and Firing- Pouring-Knockout ->Grinding ->Heat Treatment -> Machining(if requires) ->Inspection->Delivery

Leesh holdings is the key leading supplier of investment cast parts to both China market and global market.Through many years development, our casting parts now services in railway, automobile and truck, construction machinery, mining machinery, forklift truck, agricultural machinery, ship, petroleum machinery, construction, pump valve, mechanical and electrical, hardware tools, electric power equipment, etc.

Leesh capability

Method: Investment Casting, Lost Wax Casting, Precision Casting

Process Description	Process Control
Process Description	Mass(kgs)	General Tolerance Standard	Casting Tolerance(CT)	Surface Rougness(μm)
Silicon Sol	0.05-50	ISO 8062	CT4-CT6	Ra 3.2～6.3 μm
Water Glass	0.10-100	ISO 8062	CT6-CT8	Ra 6.3～12.5 μm

Material:

Stainless Steel (General SUS304, SUS316, 1.4301), etc.,

Stainless Iron (General 201, 420, 430), etc.,

High/Middle/Low Carbon Steel (A3, Q235, 45), etc.,

Alloy Steel (General 20cr, 20crmo, 20crnimo, 40cr, 40crmo, 40crnimo, 42cr, 42crmo, 42crnimo) etc.,

Brass (H59, H62, H75, H80), etc.,

Red Copper, Bronze, White Copper and other materials.

The above list Is For Reference Only, If You Have Special Needs, Please Contact Customer Service Staff.

Post Casting Process:

Ordinary Polishing, Mirror Polishing, Electrolytic Polishing, Brushed Finishing, Grinding, Heat Treatment, Finishing, Drilling and Tapping,Plating, etc

Surface Treatment:

polishing, powder coating, zinc plating, chrome plating,heat treatment,tumbling polishing, electro-polishing.

We understand your concerns about the quality, we have bought full sets of advanced inspection facilities,Spectrum analyzer, metallographic microscope, tensile testing machine, low temperature impact testing machine, X-ray flaw detection machine, magnetic particle flaw detection machine, ultrasonic flaw detection machine, coordinate measuring instrument, image measuring instrument. The above equipment can ensure the supply of high-standard precision castings to customers, and meet customers’ comprehensive testing requirements for physical and chemical properties of materials, non-destructive defect testing, and high-precision geometric size testing.
