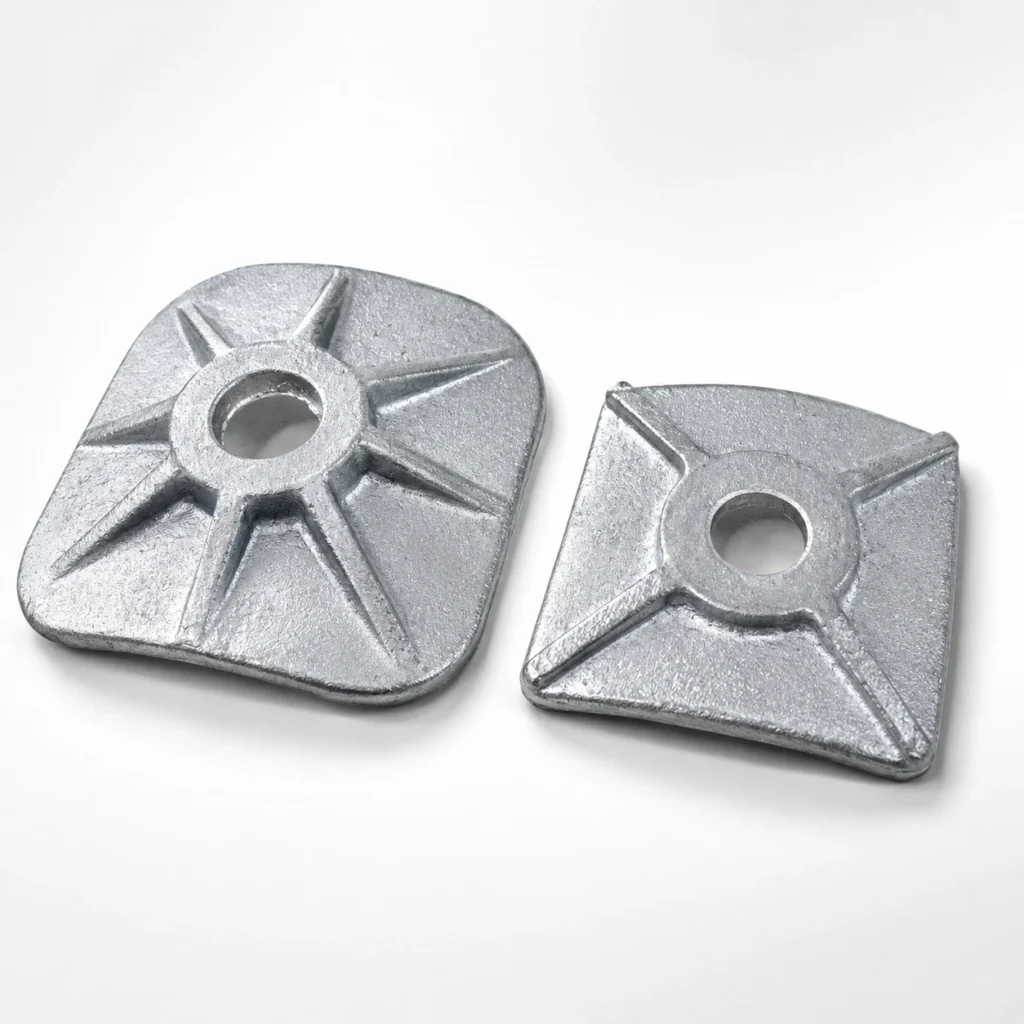

Sand Casting Hot-dip Galvanized parts combine precise as-cast geometry with a durable zinc dipping coating for castings. We cast grey iron, ductile iron and steel, applying a uniform HDG layer that withstands outdoor and marine corrosion. Every hot dip galvanized cast iron casting is checked for coating thickness and adhesion, so HDG sand casting parts last longer in pumps, valves and hardware.
Sand Casting Hot-dip Galvanized Steel Parts
Sand Casting Hot-dip Galvanized parts combine precise as-cast geometry with a durable zinc dipping coating for castings. We cast grey iron, ductile iron and steel, applying a uniform HDG layer that withstands outdoor and marine corrosion. Every hot dip galvanized cast iron casting is checked for coating thickness and adhesion, so HDG sand casting parts last longer in pumps, valves and hardware.
Why Choose Our Sand Casting Hot-dip Galvanized Parts
One foundry partner takes your part from raw casting to finished, rust-resistant component. Sand casting keeps tooling cost low and offers design freedom for large or complex shapes, while the hot-dip zinc layer protects surfaces inside and out – including recesses that spray coatings often miss.
Complete Protection
Molten zinc bonds metallurgically with the casting, coating edges, cavities and internal surfaces that brushes and sprays cannot reach.
Dimensional Accuracy
Rigid patterns and controlled pouring hold stable as-cast geometry, with machining available on critical faces and threads.
Wide Material Range
Grey iron, ductile iron and cast steel grades selected against your working load, temperature and corrosion environment.
Prototype to Volume
Flexible sand tooling supports sampling and scheduled batch production without expensive die investment.
Hot Dip Galvanized Sand Casting Materials & Coating Standards
Grey Iron, Ductile Iron & Cast Steel Options
Material grades are confirmed with you at enquiry stage against working load, temperature and corrosion environment:
| Material | Typical Applications | Character |
|---|---|---|
| Grey iron | Housings, valve bodies, counterweights | Excellent castability and vibration damping |
| Ductile iron | Brackets, fittings, load-bearing hardware | Higher tensile strength and elongation than grey iron |
| Cast steel | Structural and wear components | Tough and weldable for higher-stress duty |
Zinc Dipping Coating for Castings: Thickness & Adhesion Control
Castings are degreased, pickled and fluxed, then immersed in molten zinc at about 450 °C, where a metallurgically bonded layer of zinc and zinc-iron alloys grows into the surface. Coating thickness and uniformity are measured for each batch and adhesion is verified before packing; galvanizing can follow ASTM A123 / ISO 1461 or your own specification.
Applications of HDG Sand Casting Parts
HDG sand casting parts serve equipment that lives outdoors or in corrosive service, where a bare casting would rust through within a few seasons. Typical orders include:
Sand Cast Hot-dip Galvanized Steel Parts for OEM & ODM Projects
Sand cast hot-dip galvanized steel parts are produced to your drawings for OEM and ODM projects. Share 2D prints or 3D models and we will confirm casting grade, coating thickness and machining scope together. Machining, drilling and tapping can be completed before galvanizing so threads stay clean, and parts are packed to arrive ready for assembly.
Get a Custom Quote for Hot Dip Galvanized Castings
Custom pricing based on each part requirements. Contact us for pricing.
Send your drawings, target quantity and coating standard – our engineers will reply with a detailed quotation and lead time.
