EN 10293 GE300 / GS‑60 (1.0558) – Material Specification & Sand Casting Production
Material Overview
EN 10293 GE300, historically known as GS‑60 (1.0558), is a widely used carbon steel casting material defined by the European standard EN 10293 (Steel Castings for General Engineering Uses). It replaces the older German standard DIN 1681:1985 and delivers reliable mechanical performance for structural components in general engineering.
Key Specifications
- Standard: EN 10293:2015
- Material Number (W.Nr): 1.0558
- Former Designation: GS‑60 (DIN 1681)
- Material Type: Carbon Cast Steel
- Temperature Range: -10°C to +300°C
Mechanical Properties
Typical values for castings with wall thickness ≤ 100mm:
- Tensile Strength (Rm): 600 – 750 MPa
- Yield Strength (Rp0.2): ≥ 300 MPa
- Elongation (A5): ≥ 18%
- Impact Energy (AKV): ≥ 27 J
Chemical Composition (Typical)
- Carbon (C): ≤ 0.30%
- Silicon (Si): ≤ 0.60%
- Manganese (Mn): 0.60 – 1.00%
- Phosphorus (P): ≤ 0.040%
- Sulfur (S): ≤ 0.040%
Common Applications
EN 10293 GE300 / GS‑60 is widely used for:
- Valve bodies, pump casings, and flanges
- Gearboxes, brackets, and structural parts
- Heavy machinery components
- General engineering castings under moderate loads

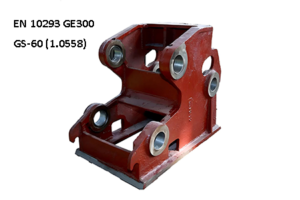

Leesh Holdings Sand Casting Process for GE300 / GS‑60
At Leesh Holdings, EN 10293 GE300 / GS‑60 (1.0558) is professionally produced using our standardized Sand Casting Process, which is ideal for carbon steel castings due to its high stability, cost efficiency, and suitability for medium to large components.
Our sand casting production flow includes:
- Pattern making and mold preparation
- Sand molding and core making
- Melting and pouring of GE300 / GS‑60 molten steel
- Shakeout, cleaning, and cutting
- Heat treatment (normalizing + tempering)
- Non-destructive testing (NDT) and dimensional inspection
- Surface finishing and machining
Leesh Holdings ensures full compliance with EN 10293 standards and delivers high-quality sand cast parts for global industrial clients.
Suitable Casting Process
GE300 / GS‑60 (1.0558) is recommended for:
- Sand Casting (Resin Sand, Green Sand)
- Lost Foam Casting
